A flood barrier system utilizing steel pipe pile supports, designed to overcome the limitations of conventional retaining wall-type flood barriers — delivering enhanced cost-efficiency, safety, and constructability.
Construction Process Explore the 6 Key Steps.
STEP 01.
Excavation
STEP 02.
Steel Pipe Pile Installation – Phase 1
STEP 03.
Steel Pipe Pile Installation – Phase 2
STEP 04.
Blinding Concrete Pouring and Rebar Assembly
STEP 05.
Formwork Installation and Concrete Pouring
STEP 06.
Installation Completed

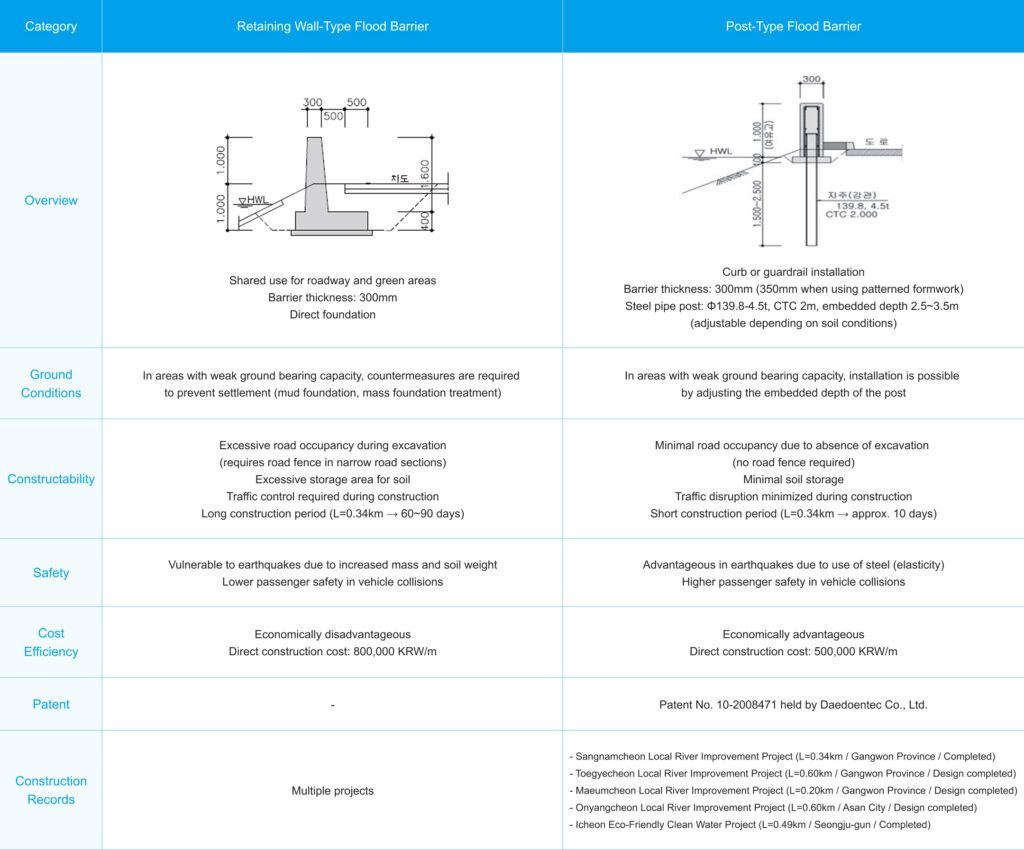

Comparison Table – Post-Type Flood Barrier Systems
Installing flood barriers along levees or roads eliminates the need for temporary structures, minimizes interference with existing utilities, and allows for effective traffic management during construction—offering clear advantages in constructability (shortened construction period) and cost-efficiency.
